EMX XF30 - Combining clean power with proven motocross technology

Ride Explore Race

The XF30 offers three distinct power modes – ride, explore, and race – each with a unique mapping to suit different riding styles. Whether you want to take a leisurely ride, conquer a challenging enduro trail, or dominate a motocross track, the XF30 is ready for the task. Its battery life can last up to 2 hours depending on the power mode and your riding style.

Instant torque delivery

The XF30 offers the perfect balance between power and handling. It's got plenty of grit, while its lightweight feel makes sure you are the one in control. No more gearbox or clutch also means you can now focus on what's important: choosing the perfect lines. The electric powertrain of the XF30 delivers intense torque that may catch you off guard at first, but it’s something you won’t want to miss out on once you try it. The XF30's 720 Nm torque on the rear wheel is just sensational.

It's super fun to ride!

Get ready for an unforgettable ride with the XF30 electric motocross bike. This top-performing machine boasts impressive characteristics and a sleek appearance, making it the perfect balance of power and handling with its 30 kW/40 HP and 720 Nm torque on the rear wheel. The XF30 is incredibly agile and light and accelerates out of the corner to its top speed very quickly! It’s super fun to ride!

All about balance and performance

Technical specifications

Peak power

40 BHP

Lasting maximum power
Innovative liquid cooling design
2 hours
Range in endurance mode
Fluent riding
Aluminium double-beam chassis

Wheel torque

720 Nm

100% electric EMX powertrain
Carefree maintenance
Clutch-free single stage
Transmission
KYB suspension
Proven race technology

Battery capacity

4500 Wh

All the energy you need
Highly efficient thermal design
Perfect fit swappable battery pack
High energy density and smart packaging
1.5 hours
Standard charge time

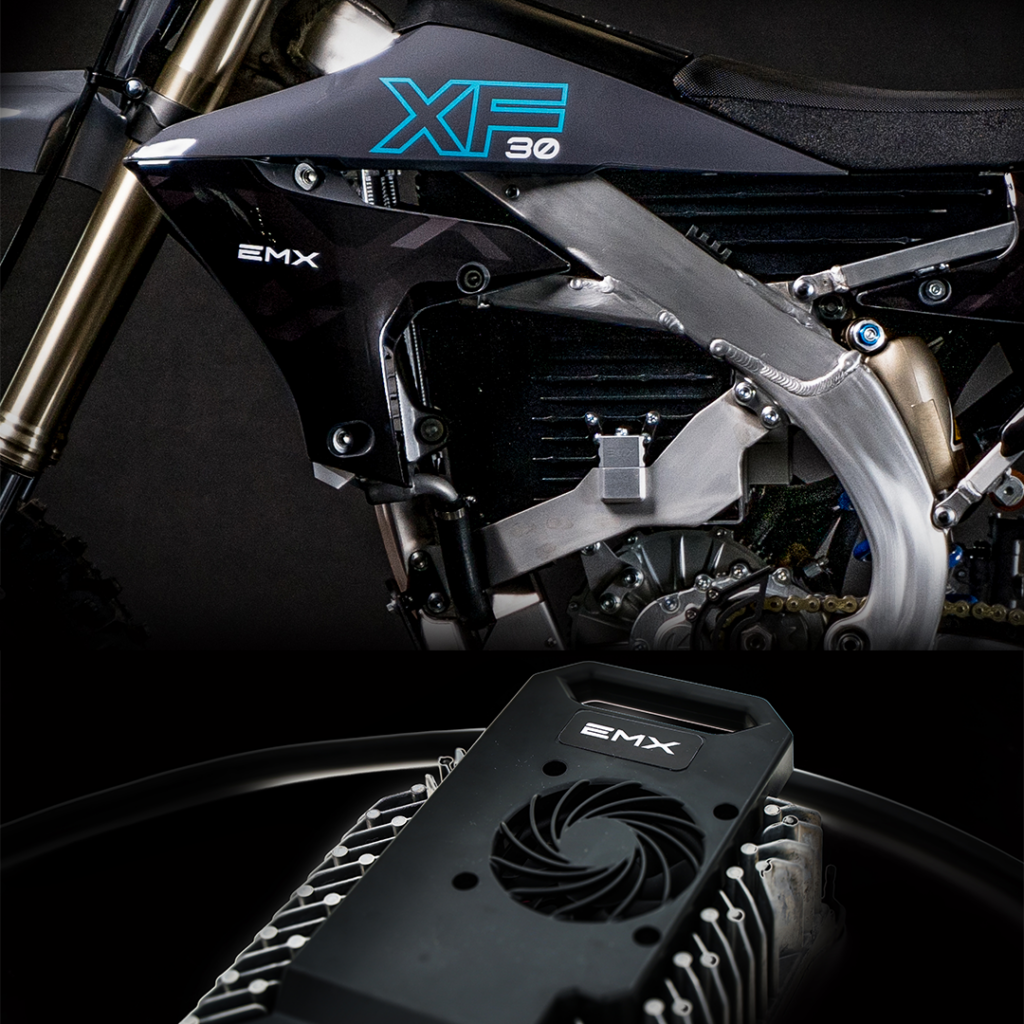

Battery / Charger

High energy density and smart packaging

Battery capacity: 4500 Wh
Voltage (nominal): 102 V
Lithium-Ion (NMC) cells
Robust aluminium housing
Highly efficient thermal design
Advanced Battery Management System
SoC battery status indicator built-in

Charger:

External charger for 220V outlets
0-80% charge duration: 1.2 hours
0-100% charge duration: 1.5 hours

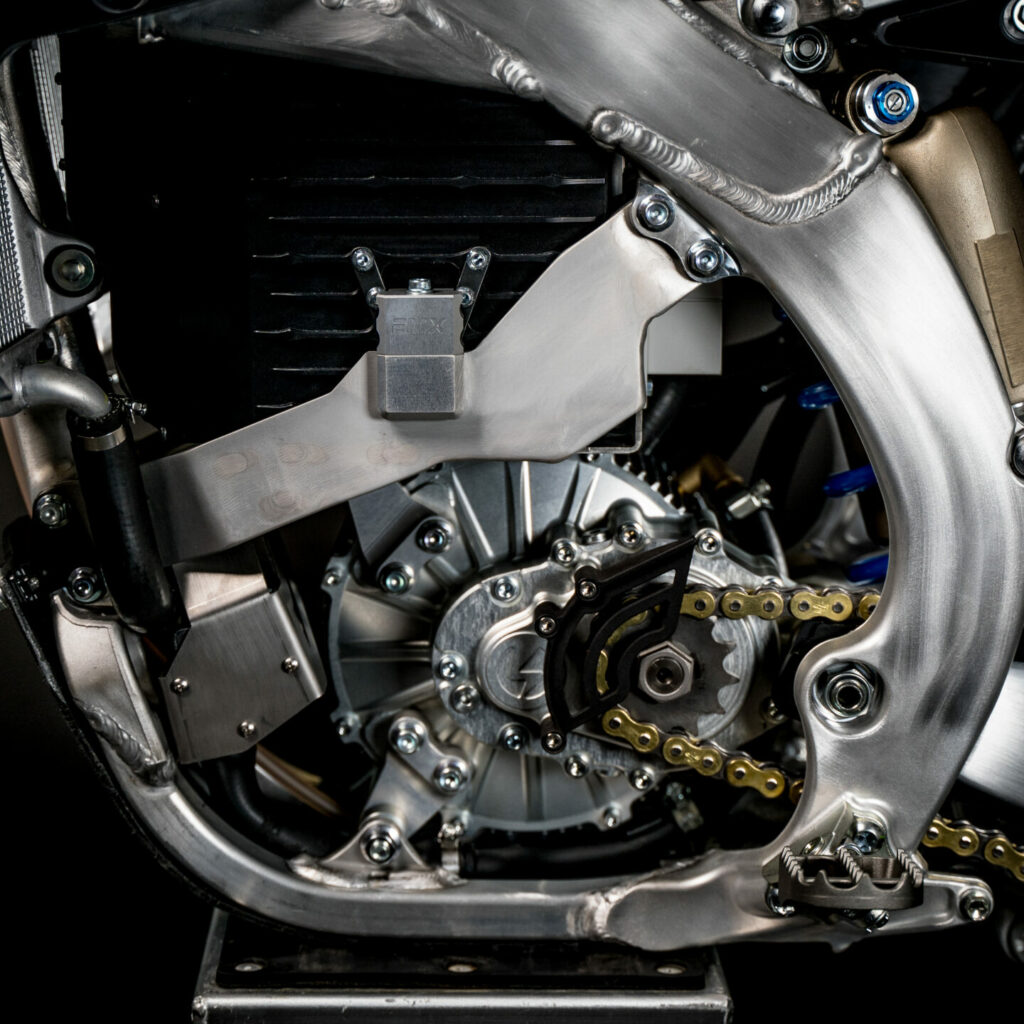

Electric EMX Powertrain

Liquid cooled motor and controller

Liquid-cooled Permanent Magnet Synchronous Motor (PMSM)
Clutch-free single-stage oil-lubricated helical gear transmission
Peak motor torque: 187 Nm (138 ft-lb)
Peak wheel torque: 720 Nm (531 ft-lb)
Peak power: 40 bhp (30 kW)
Secondary drive ratio: 13/50 (adjustable)

Controller

Advanced liquid-cooled technology
Predetermined mappings:
- Ride: Most eco-friendly mode
- Enduro: Increased engine braking and flywheel effect
- Race: Maximum power and snappy throttle

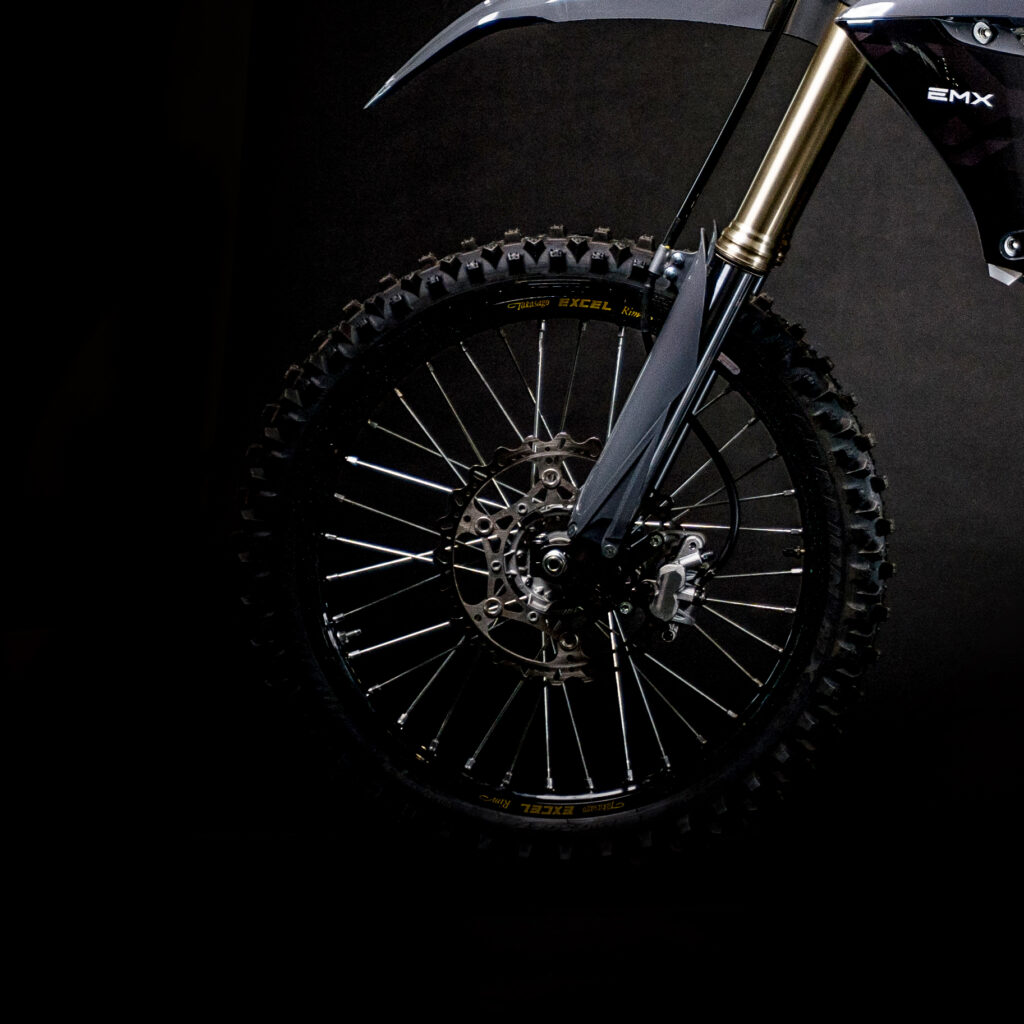

Suspension, wheels, brakes

KYB suspension, Excel rims, Nissin brakes

Suspension

Front: KYB® spring-type fork with speed-sensitive damping; fully adjustable, 310 mm travel
Rear link suspension: KYB® single shock; fully adjustable, 318 mm travel

Wheels
